TLM 103

The TLM 103 is the ideal large diaphragm microphone for all professional and semi-professional applications requiring the utmost in sound quality on a limited budget.

By utilizing the tried and true transformerless circuit found in numerous Neumann microphones, the TLM 103 features yet unattained low self-noise and the highest sound pressure level transmission. The capsule, derived from that used in the U 87, has a cardioid pattern, is acoustically well- balanced and provides extraordinary attenuation of signals from the rear.

The TLM 103 is available in satin nickel and matte black. Delivery includes an SG 103 swivel mount and a wooden jeweler's box.

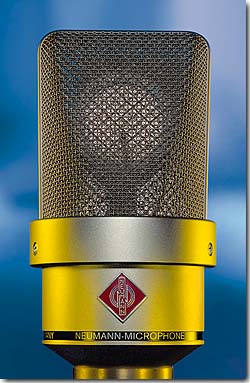

TLM-103



Application Hints

  • A universal cardioid mic
  • Vocalist recording
  • Announcer's mic for broadcasting/voice over
  • Due to minimal self-noise:
    - on-air mic for radio/broadcast
    - very low amplitude signals
    - radio drama
    - sampling
    - foley/sound effects
  • Home recording and project studios
  • Spot mic for:
    - wind instruments
    - strings
    - percussion
    - guitar amps
    - drum overhead

These are just some of the most common applications. We recommend additional experimentation to gain maximum use from this microphone.



Technical Data

Acoustical operating principle Pressure gradient transducer
Directional pattern Cardioid
Frequency range 20 Hz...20 kHz
Sensitivity at 1 kHz into 1 kohm 21 mV/Pa
Rated impedance 50 ohms
Rated load impedance 1000 ohms
Equivalent SPL CCIR 468-3 17.5 dB
Equivalent SPL DIN/IEC 651 7 dB-A
S/N ratio CCIR 468-3 76.5 dB
S/N ratio DIN/IEC 651 87 dB
Maximum SPL for THD 0.5% 138 dB
Maximum output voltage 13 dBu
Dyn. range of the mic. amplifier DIN/IEC 651 131 dB
Supply voltage 48 V ± 4 V
Current consumption 3 mA
Matching connector XLR 3F
Weight approx. 500 g
Diameter 60 mm
Length 132 mm





Diagrams (Polar Patterns & Frequency Responses)

TLM 103
Directional pattern:
cardioid
Polar Pattern

Frequency Response
